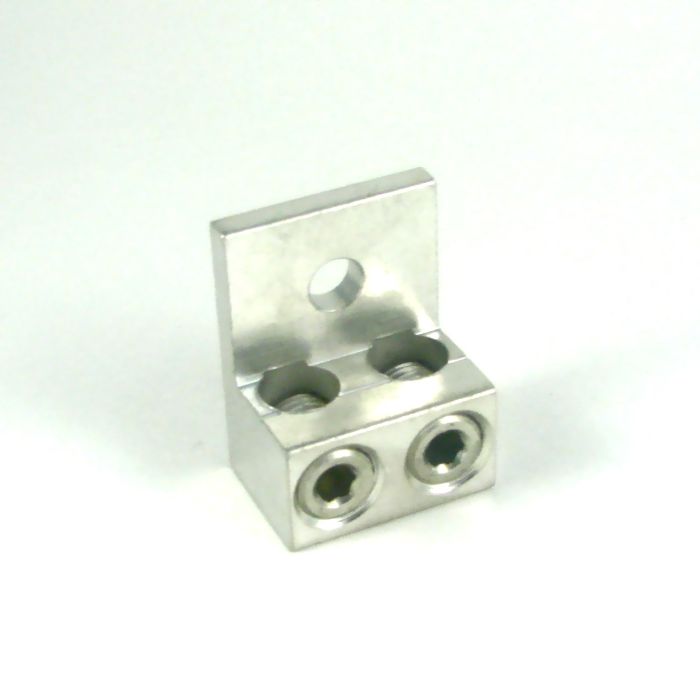

"2S1/0-HEX-M" Double Wire Lugs (1/0-14 AWG) & FLEX Wire (1-8 AWG)
In stock
SKU
2S1/0-HEX-M
.png){kind=small}
$2.32
- Buy 160 for $1.72 each and save 26%
- Buy 500 for $1.29 each and save 44%
"2S1/0-HEX-M" 1/0-14 AWG wire range, and multiple (dual) wires and FLEX wire, 1-8 AWG, G-K including mm2 class 5, 2 barrel ,aluminum or copper wire, CU9AL, 90C temperature rating, single 1/4" bolt mounting hole, UL Listed, CSA Certified. 5mm Hex Socket Screw. Made in the USA.
- Convenient inspection window to visually inspect full conductor insertion
- Made with 6061-T6 aluminum to provide maximum electrical contact and performance
- Electro tin-plated, to protect against corrosion
- Plated aluminum screw provides durable long lasting contact between the conductor and connector
Use of Ferrules (UL Listed) on 1-8 AWG
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 10/10 |
1/0-3 AWG | 50 Inch LBS. |
4-6 AWG | 45 Inch LBS. |
8 AWG | 40 Inch LBS. |
10-14 AWG | 35 Inch LBS. |
1-3 AWG | 55 |
4-6 AWG | 50 |
8 AWG | 45 |
| 150 Amp 75C Cu Wire |
| 170 Amp 90C Cu Wire |
| 120 Amp 75C Al Wire |
| 135 Amp 90C Al Wire |
| Per Wire in Power Distribution or Collection Mode |
| SKU | 2S1/0-HEX-M |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 1/0 - 14 AWG |
| FLEX Wire Range | 1-8 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
| Cross Reference Part Numbers: | ADR11-21, 2-0T, K2A-25U, DLA-112, 2AB-112, DLA-112, AML1/0-2, AA-1/0, AD-125, 87-040, AU-0, AU-1/0I, LAM2A1/0-14-6, L2A-0 |
