"300T-2" Double Barrel, Stacker Lug (6 -300 kcmil AWG)
In stock
SKU
300T-2

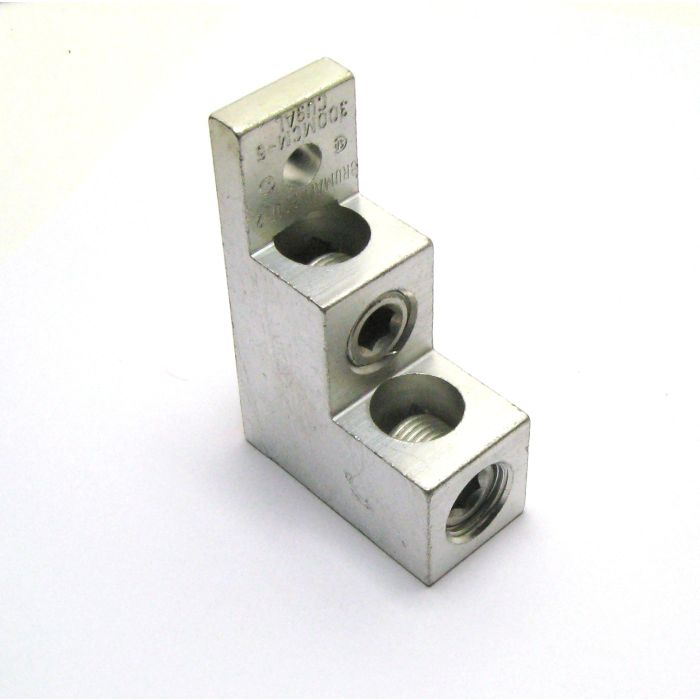

300T-2 6 -300 kcmil AWG wire range, 2 barrel, Stacker type, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole for 5/16" bolt.
UL Listed, CSA Certified.
BMC brand. Made in the USA from domestic and imported parts.
$11.40
- Buy 30 for $8.47 each and save 26%
- Buy 142 for $6.35 each and save 44%
300T-2 6 -300 kcmil AWG wire range, 2 barrel, Stacker type, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole for 5/16" bolt, UL Listed, CSA Certified. BMC brand. Made in the USA from domestic and imported parts.
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
 |
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
NO CSA |
RoHS 10/10 |
Per Wire in Power Distribution or Collection Mode
|
285 Amp 75C Cu Wire |
|
|
320 Amp 90C Cu Wire |
|
| 230 Amp 75C Al Wire | |
|
255 Amp 90C Al Wire |
| SKU | 300T-2 |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 300 kcmil - 6 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
