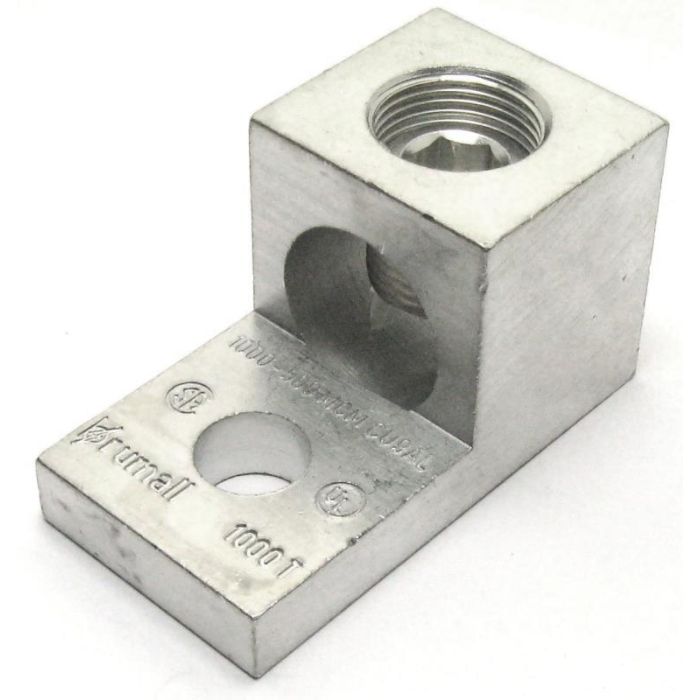

"1000T" Single Wire Lug (1000-500 kcmil)
In stock
SKU
1000T
"1000T" 1000-500 kcmil wire range, lug, 1 barrel, one 5/8" bolt mounting hole. NEMA mounting holes and spacing; this is not a NEMA tested part.
UL Listed, CSA Certified.
Made in the USA from domestic and imported parts..
$12.54
- Buy 27 for $9.32 each and save 26%
- Buy 66 for $6.99 each and save 44%
"1000T" 1000-500 kcmil wire range, lug, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 5/8" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, UL Listed, CSA Certified. Brumall brand. Made in the USA from domestic and imported parts..
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to protect against corrosion
Plated aluminum screw provides durable long lasting contact between the conductor and connector
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to protect against corrosion
Plated aluminum screw provides durable long lasting contact between the conductor and connector
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
 |
RoHS 10/10 |
|
1000-500 MCM
|
550 IN LBS.
|
|
545 Amp 75C Cu Wire
|
|
615 Amp 90C Cu Wire
|
|
445 Amp 75C Al Wire
|
|
500 Amp 90C Al Wire
|
| SKU | 1000T |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 1000 - 500 kcmil |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
