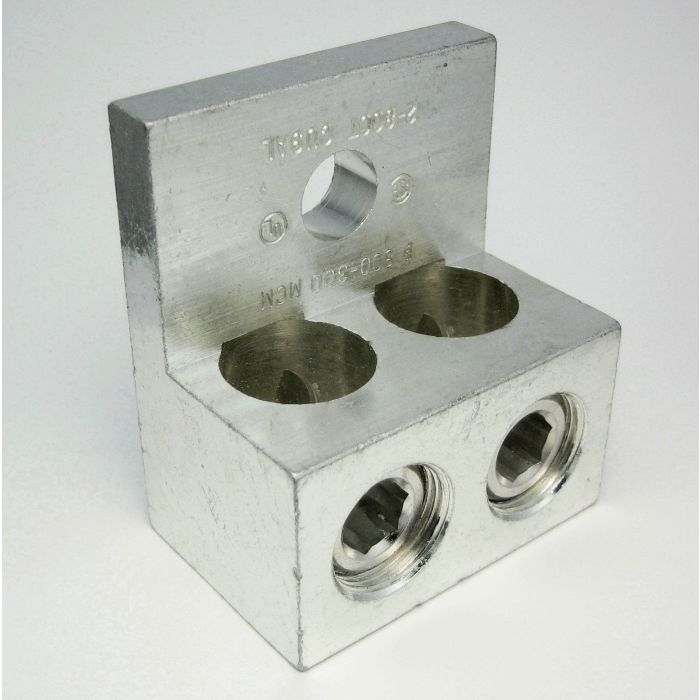

"2-800T" (800-300kcmil) Double Wire Lug
In stock
SKU
2-800T
2-800T 800-300 kcmil / MCM wire range, 2 barrel, aluminum Lug, aluminum or copper wire, CU9AL, 90C temperature rating, 1 mounting hole for 5/8" bolt. NEMA mounting holes and spacing; this is not a NEMA tested part.
$21.23
- Buy 15 for $15.78 each and save 26%
- Buy 35 for $11.84 each and save 44%
2-800T 800-300 kcmil / MCM wire range, 2 barrel, aluminum Lug, aluminum or copper wire, CU9AL, 90C temperature rating, 1 mounting hole for 5/8" bolt, NEMA mounting holes and spacing; this is not a NEMA tested part, UL Listed, CSA Certified. Brumall brand. Made in the USA from domestic and imported parts.
 |
Comparison of Switchgears, Switchboards, and Panelboards
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
 |
RoHS 10/10 |
|
490 Amp 75C Cu Wire |
|
|
555 Amp 90C Cu Wire |
|
| 395 Amp 75C Al Wire | |
|
450 Amp 90C Al Wire |
| SKU | 2-800T |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 800-300 kcmil |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
