B2C-PCB-45-175-HEX: 14 - 2 AWG
In stock
SKU
B2C-PCB-45-175-HEX

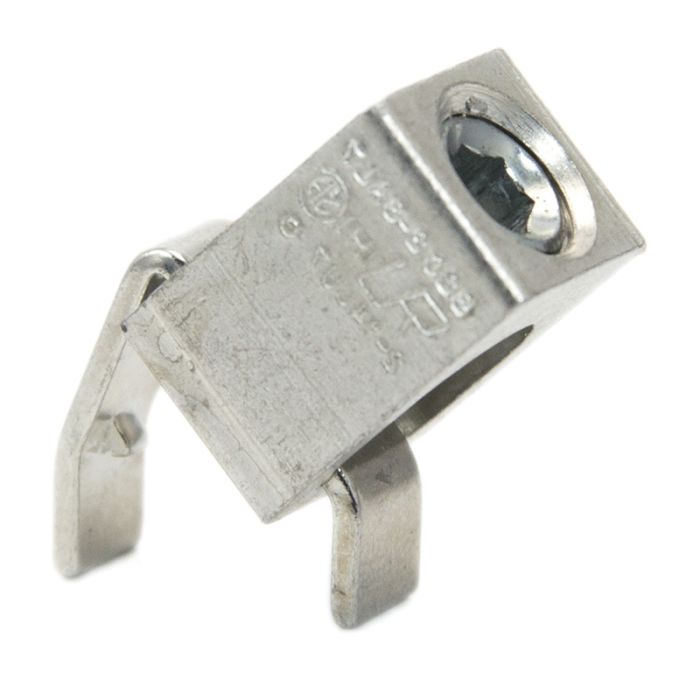

B2C-PCB-45-175-HEX: 14 - 2 AWG, 115A AMP, Hex socket screw. 2 legs at .24X.05”, with a .175" PCB penetration. Top wire, and screw entrance at 45 degrees.
$1.18
- Buy 380 for $0.88 each and save 25%
- Buy 1500 for $0.66 each and save 44%
- Buy 3000 for $0.59 each and save 50%
B2C-PCB-45-175-HEX: 14 - 2 AWG, 115A AMP, Hex socket screw. 2 legs at .24X.05”, with a .175" PCB penetration. Top wire, and screw entrance at 45 degrees.
Body and Staple THT Types
Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid copper bus staple for tens of micro ohms range of copper to copper high conductivity, low resistance current path. Exceeds IEC volt drop test standards.
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
 |
|
RoHS 10/10 |
| SKU | B2C-PCB-45-175-HEX |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 2 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
